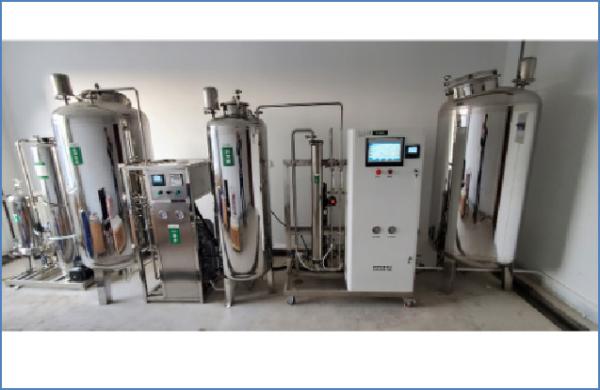

1000L Electrodeionization EDI Purified Water System Drinking Water Treatment

1000L RO System with EDI Pharmaceutical Purified EDI Purified Water System

specification

PLANT PROCES
1.Raw water pump-- provide the pressure to silica sand filter/ active carbon filter

2.Silica Sand filter -- get rid of turbidity, suspended matter, organic matter, colloid and so on
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on

4.Softener--reduce the hardness of water

5.Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The

accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

6.High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 M pa).

7.RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as
high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.

Function
1.RO pure water treatment plant is used for the production of drinking water, pharmaceutical plants, food plants, beverages
factories, fruit and vegetable factories, etc. Machine integration as a group; assembly and transport
Useful
2. Simple operation and long life.
3. Main components: RO membrane (US DOW)
4. High pressure pump: Grundfos, Denmark
5. Conductive meter
6. Ultra-high or ultra-low pressure protection facilities
7. 304 stainless steel (316L stainless steel available)

Flow chart

Pictures

CE EDI Purified Water System

1000L edi water treatment system

electrodeionization edi system Drinking water

1000L Electrodeionization EDI Purified Water System Drinking Water Treatment Images
